KSZ8997 9-Port 10/100 Managed Switch with QoS VLAN Energy Detection Auto-MDI/MDIX 3.3V Operation Industrial Temp (-40°C to +85°C) 128-Pin PQFP Package and Advanced Traffic Management
Features
8-port 10/100 integrated switch with 8 physicallayer transceivers
32Kx32 of SRAM on chip for frame buffering
2.0Gbps high performance memory bandwidth
10BaseT and 100BaseTX modes of operation
Superior analog technology for reduced power anddie size
Single 2.0V power supply with options for 2.5V and3.3V I/O
900mA(1.80 W) including physical transmit drivers
Supports port based VLAN
Supports DiffServ priority, 802.1p based priority orport based priority
Indicators for link, activity, full/half-duplex andspeed
Unmanaged operation via strapping or EEPROM atsystem reset time
Hardware based 10/100, ful/half, flow control andauto negotiation
Wire speed reception and transmission
Integrated address look-up engine, supports 1K absolute MAC addresses
Automtic address learning, address aging and address migration
Broadcast storm protection
Full-duplex lEEE 802.3x flow control
Half-duplex back pressure flow control
Comprehensive LED support
Supports MDl/MDl-X auto crossover
Commercial temperature range: 0'C to +70°C
Supports lead free product(KSZ8997)for commercial temperature range: 0'C to +70°C
Available in 128-pin PQFP package
Applications
Small workgroup switches
VolP infrastructure switches
Description
The KS8997 contains eight 10100physical layer transceivers,eight MAC(Media Access Control) units with an integrated layer 2 switch. The device runs as an eight port integrated switch.
The KS8997 is designed to reside in an unmanaged design not requiring processor intervention. This is achieved throughlstrapping Or EEPROM programming at system reset time.
INFORMATION
| Category | | |
| Manufacturer | | |
| Series | | |
| Packaging | | |
| Part Status | | |
| DigiKey Programmable | | |
| Type | | |
| Applications | Port Switch/Network Interface | |
| Mounting Type | | |
| Package / Case | | |
| Supplier Device Package | | |
| Base Product Number | |

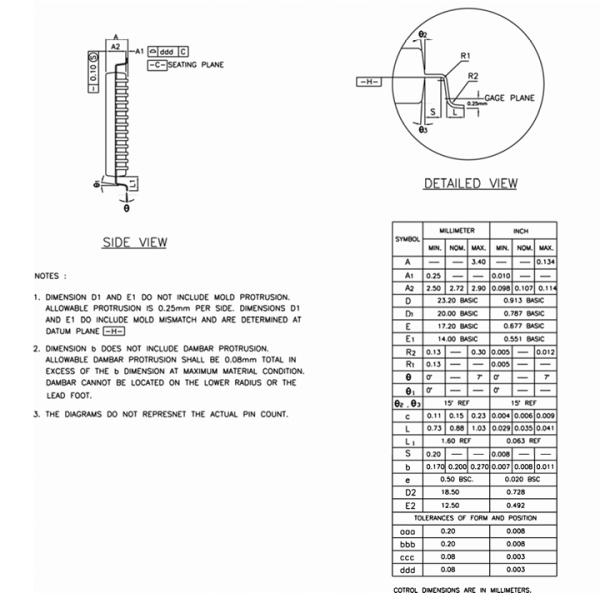

Drawing
